Industrial PTFE Products
High-Performance PTFE Components for Demanding Industrial Applications
We supply a comprehensive range of premium-quality Industrial PTFE (Polytetrafluoroethylene) Products designed for applications requiring exceptional chemical resistance, low friction, high-temperature stability, and outstanding sealing performance. Manufactured using virgin PTFE and various filled PTFE grades, our products are widely used across chemical processing, oil & gas, pharmaceutical, food processing, power generation, semiconductor, automotive, and heavy engineering industries.
Our PTFE components are precision-machined to international standards, ensuring superior dimensional accuracy, long service life, and reliable performance in the most demanding operating environments.

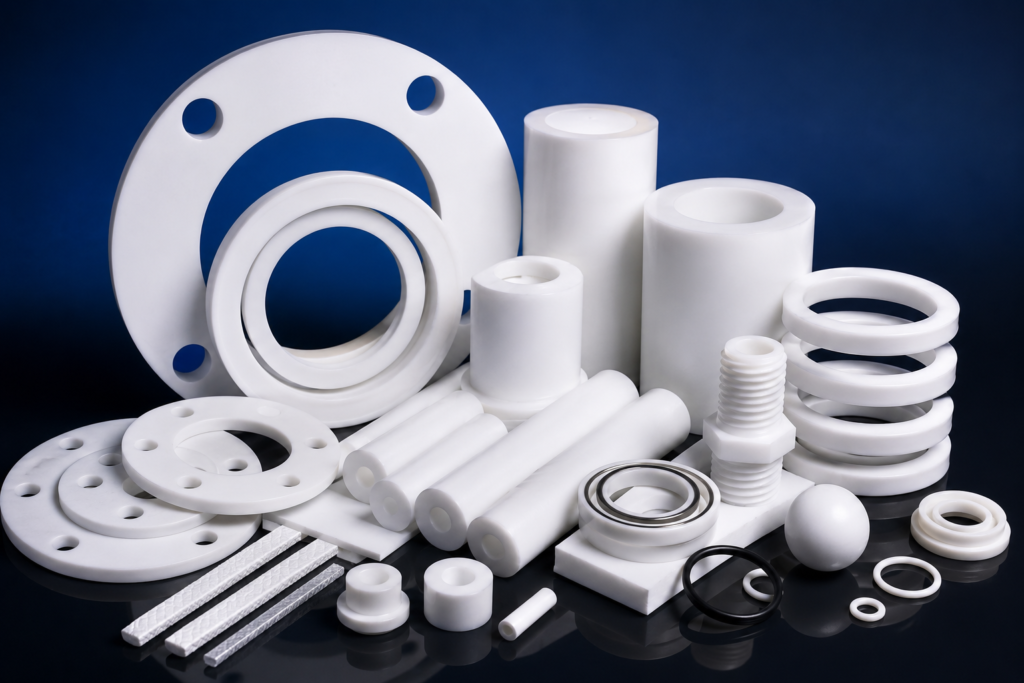

Our Product Range
- PTFE Sheets
- PTFE Rods
- PTFE Tubes
- PTFE Bushes
- PTFE Sleeves
- PTFE Rings
- PTFE Gaskets
- PTFE O-Rings
- PTFE Seals
- PTFE Bellows
- PTFE Washers
- PTFE Valve Seats
- PTFE Ball Valve Components
- PTFE Bearings
- PTFE Guide Rings
- PTFE Wear Rings
- PTFE Packing Rings
- PTFE Diaphragms
- PTFE Nozzles
- PTFE Insulators
- PTFE Spacer Rings
- PTFE Machined Components
- Custom CNC Machined PTFE Parts
Material Grades Available
Virgin PTFE
- 100% Pure PTFE
- Excellent chemical resistance
- FDA compliant options available
- Low friction coefficient
- Excellent electrical insulation
Filled PTFE Grades
- Glass Filled PTFE
- Carbon Filled PTFE
- Bronze Filled PTFE
- Graphite Filled PTFE
- Carbon Fiber Filled PTFE
- Stainless Steel Filled PTFE
- Molybdenum Disulfide (MoS₂) Filled PTFE
- Mineral Filled PTFE
Each filled grade is selected to improve wear resistance, compressive strength, thermal conductivity, or mechanical performance depending on the application.
Technical Specifications
Operating Temperature
- -200°C to +260°C (Continuous)
- Short-term exposure up to +280°C
Working Pressure
- Vacuum applications
- Up to 300 bar (depending on design and application)
Density
- 2.10–2.30 g/cm³
Hardness
- Shore D: 50–65 (Typical)
Tensile Strength
- 20–35 MPa
Elongation at Break
- 200–400%
Coefficient of Friction
- 0.05–0.10 (Very Low)
Water Absorption
- Less than 0.01%
Electrical Properties
- Excellent dielectric strength
- High electrical insulation
- Non-conductive material
Key Features
- Outstanding chemical resistance to most acids, alkalis, solvents, and corrosive media
- Excellent high-temperature performance
- Extremely low coefficient of friction
- Non-stick surface
- Excellent wear and abrasion resistance
- Superior sealing capability
- UV and weather resistant
- Moisture resistant
- Excellent electrical insulation
- Non-toxic and FDA-compliant grades available
- Long service life with minimal maintenance
- Precision CNC machined for tight tolerances
- Suitable for dynamic and static applications
Chemical Resistance
PTFE offers excellent resistance to:
- Strong Acids
- Strong Alkalis
- Solvents
- Petroleum Products
- Hydraulic Oils
- Fuels
- Steam
- Water
- Salt Solutions
- Alcohols
- Chlorinated Chemicals
- Food-grade Chemicals
Standard Sizes
PTFE Sheets
- Thickness: 0.5 mm to 100 mm
- Width: Up to 1500 mm
- Custom cut sizes available
PTFE Rods
- Diameter: 5 mm to 300 mm
- Length: Standard and custom lengths
PTFE Tubes
- Inside Diameter: 2 mm onwards
- Outside Diameter: Up to 300 mm
- Thin and thick wall options
PTFE Bushes & Sleeves
- Custom machined as per customer drawings
- Precision tolerance manufacturing
